Acrodisc syringe filters with nylon membrane

Name: Acrodisc syringe filters with nylon membrane
SKU: 16819
Availability: InStock

Versatile filter for both aqueous and solvent-based sample filtration

SKU： N/A 分类：针头式滤器-非灭菌, 尼龙针头式滤器-非灭菌, 实验室耗材, 实验室过滤产品-滤纸、滤膜、滤器

Diameter (Metric)

13 mm
25 mm

孔径

0,2
0.2 μm
GxF/0.2 µm
0.45 µm
GxF/0.45 µm

数量

25/pkg, 200/cs
50/pkg
50/pkg, 200/cs
50pkg
100/pkg 300/cs
1000/pkg
Other

过滤介质

Glass Fiber Over Nylon
Nylon

滤器尺寸

25 mm
Other

产品型号

0.2 µm, 13mm, male slip luer outlet (100/pkg 300/cs)
0.2 µm, 13mm, minspike outlet (100/pkg 300/cs)
0.2 µm, 13mm, male slip luer outlet (1000/pkg)
0.2 µm, 13mm, minspike outlet (1000/pkg)
0.2 µm, 25mm (50/pkg, 200/cs)
0.2 µm, 25mm (1000/pkg)
0.2 µm (50/pkg 200/cs)
0.2µm Nylon 50/PK
GxF/0.2 µm (50/pkg, 200/cs)
GXF/0.2µm Nylon 50/PK
0.2 µm (1000/pkg)
GxF/0.2 µm (1000/pkg)
0.45 µm, 13mm, male slip luer outlet (100/pkg 300/cs)
0.45 µm, 13mm, minspike outlet (100/pkg 300/cs)
0.45 µm, 13mm, male slip luer outlet (1000/pkg)
0.45 µm, 13mm, minspike outlet (1000/pkg)
0.45 µm, 25mm (50/pkg, 200/cs)
GF/0.45 µm, 25mm (50/pkg, 200/cs)
0.45 µm, AutoPack tubes (25/pkg 200/cs)
GxF/0.45 µm, AutoPack tubes (25/pkg 200/cs)
0.45 µm, 25mm (1000/pkg)
GF/0.45 µm, 25mm (1000/pkg)
0.45 µm (50/pkg 200/cs)
0.45µm Nylon 50/PK
GFX/ 0.45µm Nylon 50/Pk
GxF/0.45 µm (50/pkg 200/cs)
0.45 µm (1000/pkg)
GxF/0.45 µm (1000/pkg)
13mm Mini w/ 0.45µm NYLON 100pk
25mm w/ 0.2µm NYLON 50pk
25mm w/ 0.45µm NYLON 50pk

清除

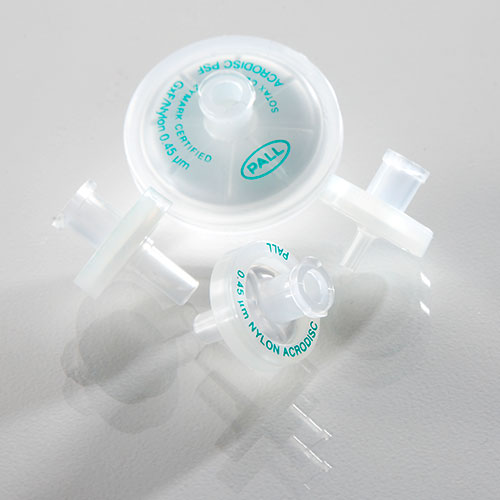

Acrodisc™ syringe filters with nylon membrane, a Pall Life Sciences product, provide excellent chemical compatibility with esters, bases, and alcohols. Saves time because no prewetting is required.

Excellent chemical compatibility with esters, bases, and alcohols.
Saves time because no prewetting is required.
Easy filtration of particulate-laden samples with the glass fiber prefilter version.
13 mm device with minispike configuration offers low hold-up and easy filtration into autosampler vials.
Prevents spurious peaks on chromatograms for accurate experimental results. HPLC certified for low levels of UV-absorbing extractables.

Specifications

Materials of Construction

Filter Media: Nylon
Housing: Polypropylene
GxF Prefilter: Borosilicate glass

Pore Size

Nylon Membrane: 0.2 and 0.45 μm
GxF Prefilter: 40 – 1 μm

Effective Filtration Area

4 mm: 0.2 cm²
13 mm: 1.0 cm²
25 mm PSF: 3.9 cm²

Sample Volume

4 mm: < 2 mL
13 mm: < 10 mL
25 mm PSF: < 150 mL

Inlet/Outlet Connections

4, 13, and 25 mm PSF: Female luer lock inlet, male slip luer outlet
13 mm: Available with minispike outlet

Typical Hold-Up Volume (with air purge)

4 mm: < 10 μL
13 mm (minispike): < 14 μL
13 mm (male luer): < 30 μL
25 mm PSF: < 125 μL
25 mm PSF GxF: < 150 μL

Maximum Operating Temperature

55°C (131°F) at 2.1 bar (210 kPa, 30 psi)

Maximum Operating Pressure

4 mm: 5.2 bar (520 kPa, 75 psi)
13 mm: 6.9 bar (690 kPa, 100 psi)
25 mm PSF: 4.1 bar (410 kPa, 60 psi) at 21 – 24°C (70 – 75°F); 2.1 bar (210 kPa, 30 psi) at 55°C (131°F)

Typical Water Flow Rate mL/min at 2.1 bar (210 kPa, 30 psi)

13 mm, 0.2 μm: 10
13 mm, 0.45 μm: 15
25 mm PSF, 0.2 μm: 115 0.45 μm: 245
25 mm PSF GxF/0.45 μm: 215

Applications

The Acrodisc PSF GxF syringe filter provides two to four times the throughput of standard prefilter devices.
Not recommended for acids > 1 N or halogenated solvents.
