Acrodisc syringe filters with PTFE membrane

Name: Acrodisc syringe filters with PTFE membrane
SKU: 19420
Availability: InStock

For filtration of gas and/or organic solvents.

SKU： N/A 分类：针头式滤器-非灭菌, PTFE针头式滤器-非灭菌, 实验室耗材, 实验室过滤产品-滤纸、滤膜、滤器

Hold-up volume

<14 µL
<30 µL
<125 µL
Other

孔径

0.2 μm
0.45 µm
1 µm

过滤介质

Glass Fiber Over Hydrophobic PTFE
Hydrophobic PTFE

Diameter (Metric)

4 mm
13 mm
25 mm

产品型号

Acrodisc PSF syringe filters, PTFE membrane, GxF/0 2 µm, 25 mm (1000/pkg)
Acrodisc syringe filters, PTFE membrane, 0.2 µm, 13 mm minispike outlet (100/pkg 300/cs)
Acrodisc syringe filters, PTFE membrane, 0.2 µm, 13 mm, male slip luer outlet (100/pkg 300/cs)
Acrodisc syringe filters, PTFE membrane, 0.2 µm, 13 mm, minispike outlet (100 pkg)
Acrodisc syringe filters, PTFE membrane, 0.2 µm, 13 mm, male slip luer outlet (1000/pkg)
Acrodisc PSF syringe filters, PTFE membrane, 0.2 µm, 25mm (50 pkg)
Acrodisc PSF syringe filters, PTFE membrane, GxF/0.2 µm, 25 mm (50/pkg, 200/cs)
Acrodisc syringe filters, PTFE membrane, 0.2 µm, 25 mm (50/pkg, 200/cs)
Acrodisc syringe filters, PTFE membrane, 0.2 µm, 25mm (50 pkg)
Acrodisc syringe filters, PTFE membrane, 0.2 µm, 25 mm, male slip luer outlet (1000/pkg)
Acrodisc syringe filters, PTFE membrane, 0.45 µm, 4 mm (250pkg / 750 cs)
Acrodisc syringe filters, PTFE membrane, 0.45 µm, 13 mm minispike outlet (100/pk 300/cs)
Acrodisc syringe filters, PTFE membrane, 0.45 µm, 13 mm, male slip luer outlet (100/pkg 300/cs)
Acrodisc syringe filters, PTFE membrane, 0.45 µm, 13 mm, minispike outlet (100/pkg)
Acrodisc syringe filters, PTFE membrane, 0.45 µm, 13 mm, male slip luer outlet (1000/pkg)
Acrodisc syringe filters, PTFE membrane, 0.45 µm, 13 mm, minispike outlet (1000/pkg)
Acrodisc PSF syringe filters, PTFE membrane, 0.45 µm, 25 mm, AutoPack tubes (25/pkg 200/cs)
Acrodisc PSF syringe filters, PTFE membrane, 0.45 µm, 25 mm (50/pkg 200/cs)
Acrodisc PSF syringe filters, PTFE membrane, 0.45 µm, 25 mm (50/pkg)
Acrodisc PSF syringe filters, PTFE membrane, GxF/0.45 µm, 25 mm (50/pkg)
Acrodisc PSF syringe filters, PTFE membrane, GxF/0.45, 25 mm (50/pkg 200/cs)
Acrodisc syringe filters, PTFE membrane, 0.45 µm, 25 mm (50/pkg, 200/cs)
Acrodisc syringe filters, PTFE membrane, 0.45 µm, 25 mm (50pkg)
Acrodisc syringe filters, PTFE membrane, GXF/0.45 µm, 25 mm (50/pkg 200/cs)
Acrodisc PSF syringe filters, PTFE membrane, 0.45 µm, 25 mm (1000/pkg)
Acrodisc PSF syringe filters, PTFE membrane, GxF/0.45 µm, 25 mm (1000/pkg)
Acrodisc syringe filters, PTFE membrane, 1 µm, 25mm (50 pkg. 200/cs)
Acrodisc syringe filters, PTFE membrane, 1 µm, 25 mm (1000/pkg)

清除

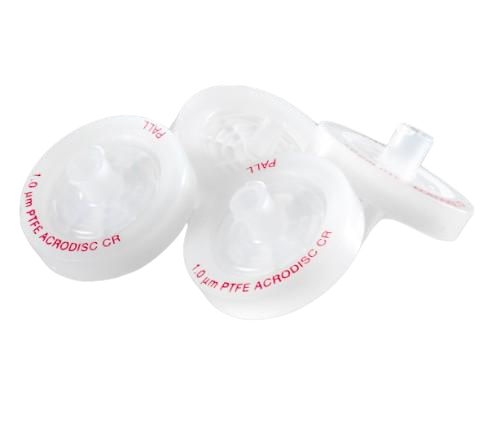

Acrodisc™ syringe filters with PTFE membrane, a Pall Life Sciences product, provide exceptional chemical and temperature compatibility.

Ideal for filtration of gas and/or organic solvents.
Prevents spurious peaks on chromatograms for accurate experimental results. HPLC certified for low levels of UV-absorbing extractables.
Prevents “air bubble” lock when filling sample vials with 13 mm minispike outlet.
4 mm device offers the lowest sample hold-up (< 10 μL) and is useful for samples up to 2 mL in volume.

Specifications

Materials of Construction

Filter Media: Hydrophobic PTFE membrane on a polypropylene support
Housing: Polypropylene
GxF Prefilter: Borosilicate glass

Pore Size

PTFE Membrane: 0.2 and 0.45 μm
GxF Prefilter: 40 – 1 μm

Effective Filtration Area

4 mm: 0.2 cm²
13 mm: 1.0 cm²
25 mm PSF: 3.9 cm²

Sample Volume

4 mm: < 2 mL
13 mm: < 10 mL
25 mm PSF: < 150 mL

Inlet/Outlet Connections

4, 13, and 25 mm PSF: Female luer lock inlet, male slip luer outlet
13 mm: Available with minispike outlet

Typical Hold-Up Volume (with air purge)

4 mm: < 10 μL
13 mm (minispike): < 14 μL
13 mm (male luer): < 30 μL
25 mm PSF: < 125 μL

Typical Liquid Flow Rate (MeOH)

mL/min at 1.0 bar (100 kPa, 15 psi)
25 mm PSF, 0.2 μm: 245
25 mm PSF, 0.45 μm: 510
25 mm PSF, GxF/0.45 μm: 395

Maximum Operating Temperature

100°C (212°F) at 2.1 bar (210 kPa, 30 psi)

Maximum Operating Pressure

4 mm: 5.2 bar (520 kPa, 75 psi)
13 mm: 6.9 bar (690 kPa,100 psi)
25 mm PSF: 4.1 bar (410 kPa, 60 psi) at 21 – 24°C (70 – 75°F); 2.1 bar (210 kPa, 30 psi) at 100°C (212°F)

Sterilization of 25 mm Filters

Provided non-sterile. If desired, autoclave at 121- 123°C (250 – 253°F) at 1.0 bar (100 kPa, 15 psi) for a maximum of 15 min.

Applications

Ultimate in chemical compatibility for filtering harsh chemicals that destroy other membrane materials.
The Acrodisc PSF GxF syringe filter provides two to four times the throughput of standard prefilter devices.
Moisture barrier for venting applications.
25 mm Acrodisc PSF syringe filter is available in robotic-compatible AutoPack™ packaging
