Ensures high efficiency particulate-free air (HEPA)
| Connections | ⅜” FNPT & hose barb |
| Effective filtration area | 860 cm² |
| Membrane material | Versapor acrylic copolymer on a nonwoven support |
| Pack size | 1 |
| Removal Rating (µm) | 1.2 µm |
| Sterile | Nonsterile |

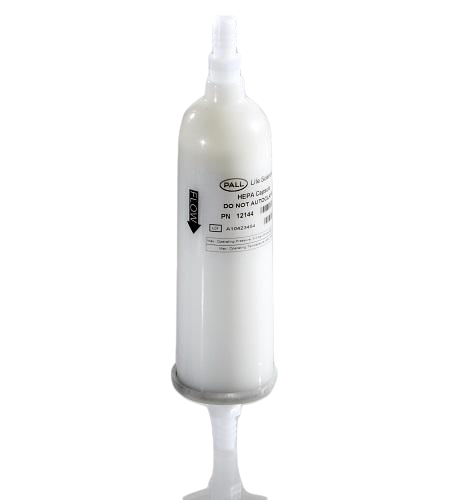

HEPA Capsule Versapor™, a Pall Life Sciences product, feature a porous membrane that delivers high air flow rates at low differential pressure and extends filter life
Ensures particulate-free air 99.97% retention of 0.3 µm DOP aerosol1
1Following ASTM D 2986-95A
Filter Media: Versapor™ membrane (acrylic copolymer on a non-woven support)
Housing: Polypropylene
Filter Support: Polyester
Adapters: Nylon
Membrane Sealing Material: Polyurethane
Housing Sealing Material: Polypropylene-encapsulated stainless steel
Liquid Filtration: 1.2 μm
Air/Gas Filtration: 99.97% retention of 0.3 μm DOP aerosol2
860 cm2
Housing Length: 19.3 cm (7.6 in.)
Overall Length: 26.9 cm (11 in.)
Diameter: 6.3 cm (2.5 in.)
3/8 in. FNPT; includes optional hose barb fittings to accept 12.7 mm (1/2 in.) ID tubing
Maximum Operating Temperature
88°C (190°F)
3.4 bar (340 kPa, 50 psi)
Passes United States Pharmacopeia (USP) Biological Reactivity Test, In Vivo <88>
2Following ASTM D 2986-95A
Designed to provide bacteria-free air for sterile applications
Can be used for non-sterilizing liquid prefiltration
