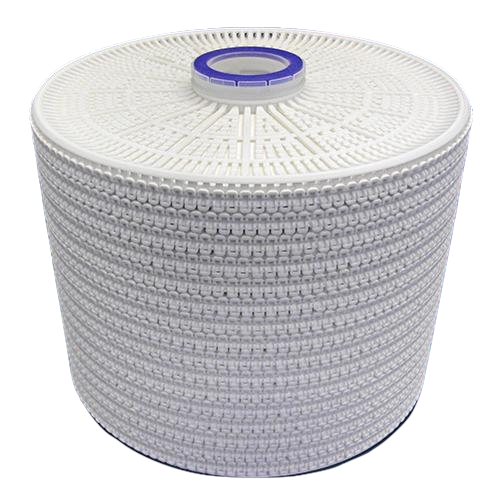

SUPRAdisc™ II depth filter modules

Name: SUPRAdisc™ II depth filter modules
SKU: 23741
Availability: InStock

Next generation in depth filter module technology for bioprocess clarification applications.

SKU： N/A 分类：直流过滤, 深层过滤, 生物工艺过滤

Series

Bio-Series
HP-Series
P-Series

Media

BIO 10
BIO 20
PDK5
SUPRA 80P
K700P
K250P
K100P
EKMP
PDD1
SUPRA EK1P
EKX-P
K200P
PDE1
EKSP
PDE2
PDF3
KS 50P
PDH4
K900P
V100P

EFA

1.8 m²
2.5 m²
5 m²

Nominal retention rating

0.2 - 0.4 µm
0.4 - 1.0 µm
1.5 - 20.0 µm
1.0 - 3.0 µm
6.0 - 15 µm
4.0 - 9.0 µm
0.2 - 0.5 µm
0.1 - 0.85 µm
0.05 - 0.2 µm
3.0 - 6.0 µm
0.1 - 3.0 μm
0.1 - 0.3 µm
0.2 - 3.5 µm
0.2 - 6.0 µm
0.4 - 0.8 µm
0.5 - 15.0 µm
8.0 - 20.0 µm
2.0 - 4.0 µm

产品型号

SUPRAdisc II module, Bio-Series, BIO 10 media, 1.8 m² EFA, Flat gasket
SUPRAdisc II module, Bio-Series, BIO 20 media, 5 m² EFA, Double O-ring gasket
SUPRAdisc II module, Bio-Series, BIO 10 media, 5 m² EFA, Flat gasket
SUPRAdisc II module, HP-Series, PDK5 media, 2.5 m² EFA, Double O-ring gasket
SUPRAdisc II module, P-Series, SUPRA 80P media, 1.8 m² EFA, Double O-ring gasket
SUPRAdisc II module, P-Series, K700P media, 1.8 m² EFA, Flat gasket
SUPRAdisc II module, P-Series, K250P media, 1.8 m² EFA, Double O-ring gasket
SUPRAdisc II module, P-Series, K100P media, 1.8 m² EFA, Double O-ring gasket
SUPRAdisc II module, P-Series, EKMP media, 1.8 m² EFA, Double O-ring gasket
SUPRAdisc II module, HP-Series, PDD1 media, 2.5 m² EFA, Flat gasket
SUPRAdisc II module, P-Series, SUPRA EK1P media, 5 m² EFA, Flat gasket
SUPRAdisc II module, Bio-Series, BIO 10 media, 5 m² EFA, Double O-ring gasket
SUPRAdisc II module, P-Series, K250P media, 5 m² EFA, Double O-ring gasket
SUPRAdisc II module, Bio-Series, BIO 10 media, 1.8 m² EFA, Double O-ring gasket
SUPRAdisc II module, P-Series, EKX-P media, 1.8 m² EFA, Flat gasket
SUPRAdisc II module, P-Series, EKX-P media, 5 m² EFA, Flat gasket
SUPRAdisc II module, P-Series, K200P media, 5 m² EFA, Double O-ring gasket
SUPRAdisc II module, P-Series, K700P media, 5 m² EFA, Double O-ring gasket
SUPRAdisc II module, HP-Series, PDD1 media, 2.5 m² EFA, Double O-ring gasket
SUPRAdisc II module, HP-Series, PDE1 media, 2.5 m² EFA, Flat gasket
SUPRAdisc II module, HP-Series, PDE1 media, 2.5 m² EFA, Double O-ring gasket
SUPRAdisc II module, P-Series, K100P media, 1.8 m² EFA, Flat gasket
Seitz P-series depth filter in SUPRAdisc module, SDP II EKS 200PEKSS440SP
SUPRAdisc II module, HP-Series, PDE2 media, 2.5 m² EFA, Flat gasket
SUPRAdisc II module, HP-Series, PDE2 media, 2.5 m² EFA, Double O-ring gasket
SUPRAdisc II module, HP-Series, PDF3 media, 2.5 m² EFA, Flat gasket
SUPRAdisc II module, HP-Series, PDF3 media, 2.5 m² EFA, Double O-ring gasket
SUPRAdisc II module, P-Series, KS 50P media, 5 m² EFA, Flat gasket
SUPRAdisc II module, P-Series, K700P media, 1.8 m² EFA, Double O-ring gasket
SUPRAdisc II module, HP-Series, PDH4 media, 2.5 m² EFA, Double O-ring gasket
SUPRAdisc II module, P-Series, K900P media, 1.8 m² EFA, Double O-ring gasket
SUPRAdisc II module, HP-Series, PDH4 media, 2.5 m² EFA, Flat gasket
SUPRAdisc II module, P-Series, SUPRA EK1P media, 1.8 m² EFA, Double O-ring gasket
SUPRAdisc II module, P-Series, K250P media, 1.8 m² EFA, Flat gasket
SUPRAdisc II module, P-Series, K100P media, 5 m² EFA, Double O-ring gasket
SUPRAdisc II module, P-Series, K250P media, 5 m² EFA, Flat gasket
SUPRAdisc II module, P-Series, KS 50P media, 1.8 m² EFA, Flat gasket
SUPRAdisc II module, P-Series, SUPRA 80P media, 5 m² EFA, Double O-ring gasket
SUPRAdisc II module, P-Series, KS 50P media, 5 m² EFA, Double O-ring gasket
SUPRAdisc II module, P-Series, EKMP media, 5 m² EFA, Flat gasket
SUPRAdisc II module, P-Series, K100P media, 5 m² EFA, Flat gasket
SUPRAdisc II module, P-Series, SUPRA EK1P media, 1.8 m² EFA, Flat gasket
SUPRAdisc II module, Bio-Series, BIO 20 media, 5 m² EFA, Flat gasket
SUPRAdisc II module, P-Series, K200P media, 1.8 m² EFA, Flat gasket
SUPRAdisc II module, P-Series, K200P media, 1.8 m² EFA, Double O-ring gasket
SUPRAdisc II module, P-Series, SUPRA 80P media, 1.8 m² EFA, Flat gasket
SUPRAdisc II module, HP-Series, PDK5 media, 2.5 m² EFA, Flat gasket
SUPRAdisc II module, P-Series, EKSP media, 1.8 m² EFA, Double O-ring gasket
SUPRAdisc II module, P-Series, SUPRA EK1P media, 5 m² EFA, Double O-ring gasket
SUPRAdisc II module, P-Series, EKX-P media, 1.8 m² EFA, Double O-ring gasket
SUPRAdisc II module, P-Series, V100P media, 1.8 m² EFA, Double O-ring gasket
SUPRAdisc II module, P-Series, V100P media, 1.8 m² EFA, Flat gasket
SUPRAdisc II module, P-Series, V100P media, 5 m² EFA, Flat gasket
SUPRAdisc II module, P-Series, EKMP media, 1.8 m² EFA, Flat gasket
SUPRAdisc II module, P-Series, EKSP media, 5 m² EFA, Flat gasket
Seitz P-series depth filter in SUPRAdisc module, SDP II EKS 200PEKSC232SP

清除

The SUPRAdisc™ II module design combines the filtration performance of Seitz™ media and the structural robustness of interlocking dual drainage plates. The dual drainage plate design of the SUPRAdisc™ II depth filter module optimizes the flow distribution by providing unobstructed process flow.

Improved structural robustness due to dual drainage plates.
Optimized flow distribution upstream and downstream of the filter sheets maximizes filter utilization.
Filter media is less susceptible to blinding from media-to-media contact within the module assembly.
Fully supported filter sheets inhibit the rupturing of filter media frequently associated with back pressure.
Highest packing density minimizes hold up volume.
Steam sterilizable at 125°C for 30 minutes.
All plastic components used in construction meet the specifications for the biological test listed in the current version of the USP Class VI 121°C.
Fully traceable by serial number.

SUPRAdisc™ module filter media

All pharmaceutical grade depth filter sheets can readily be incorporated into SUPRAdisc™ II modules.

Seitz™ P-series

Seitz™ P-series depth filter sheets were specifically developed for the strict requirements in biotechnological and pharmaceutical industries. Manufactured with stringent in-process control methods assures consistent filtration quality, a very high purity of filter medium, and alignment with the requirements of the pharmaceutical industry.

Code	Filter media	Retention rating (µm)	Typical ash content (%)	Endotoxin level (EU/mL)
PEKX	EKX-P	0.05 – 0.2	52	< 0.06
PEKS	EKS-P	0.1 – 0.3	58	< 0.06
PEKM	EKM-P	0.2 – 0.5	51	< 0.06
PEK1	SUPRA EK 1 P	0.2 – 0.5	47	< 0.06
P050	KS 50 P	0.4 – 0.8	46	< 0.06
P100	K 100 P	1.0 – 3.0	46	< 0.06
P080	SUPRA 80 P	1.0 – 3.0	49	< 0.06
V100	V100P	2.0 – 4.0	52	< 0.06
P200	K 200	3.0 – 6.0	46	< 0.06
P250	K 250	4.0 – 9.0	46	< 0.06
P700	K 700	6.0 – 15.0	46	< 0.06
P900	K 900 P	8.0 – 20.0	46	< 0.06
P1500	T1500 P	11.0 – 30.0	33	< 0.06

Seitz™ Bio-series

Seitz™ Bio-series depth filter sheets are specially developed from highly purified natural and modified cellulose fibers and contain no inorganic materials such as diatomaceous earth (DE), perlite or glass fibers. The lack of these inorganic substances significantly reduces the levels of ash and heavy metal extractables.

Code	Filter media	Retention rating (µm)	Typical ash content (%)	Endotoxin level (EU/mL)
B010	BIO 10	0.2 – 0.4	< 1	< 0.06
B020	BIO 20	0.4 – 1.0	< 1	< 0.06

Seitz™ HP-series

Seitz™ HP-series depth filter sheets are comprised of two distinct layers of Seitz™ P-series depth filter sheets; a coarser layer upstream followed by a finer layer downstream. These performance-enhanced depth filter sheets have been designed for use in low viability, high solids containing applications. As small shifts in process conditions can cause dramatic differences in filtration requirements, the flexibility of combining any combination of P-series media in an HP format allows for improved process optimization.

High quality and FDA conformity

The filter sheets meet the specifications set forth in the US Code of Federal Regulations Title 21, parts 177.2260 e, f, g, h, i, j, k, l. The materials for all plastic components are listed in US Code of Federal Regulations Title 21, part 177.1520.

Filter selection

The SUPRAdisc™ II module product range can be found in the product table below. You can use the filters at the top of each column to narrow your search based on the following criteria.
