Frac-950 Tube Racks

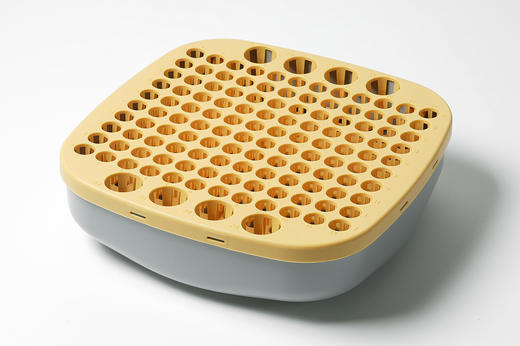

支架 A，配有用于 18 mm 和 30 mm 试管的碗

订购信息	18 mm 是指实际试管的套环直径。孔径约为 17 mm。
每个托架的载量最大值	120 x 18 mm 试管（最大试管高度：115 mm） 8 x 30 mm 试管（最大试管高度：130 mm）
托架名称	支架 A
颜色	黄色
过流部件	否
指南	配有碗、管支架和试管架。

SKU： 18608311 分类：层析系统和工具, 工具和配件, 工具和配件, 工具和配件, 层析纯化, 层析系统和层析柱, 层析系统和层析柱, 组分收集器和配件, 组分收集器和配件, 组分收集器和配件, mRNA&脂质纳米递送系统, 病毒载体

Advanced functionality for both standard and preparative mode that allows large volume fraction collection.

Flexible fraction collection from 96-well microplates plates to 250 ml bottles or funnels connected to any vessel.

Fixed volume fractionation or automatic peak fractionation is possible.

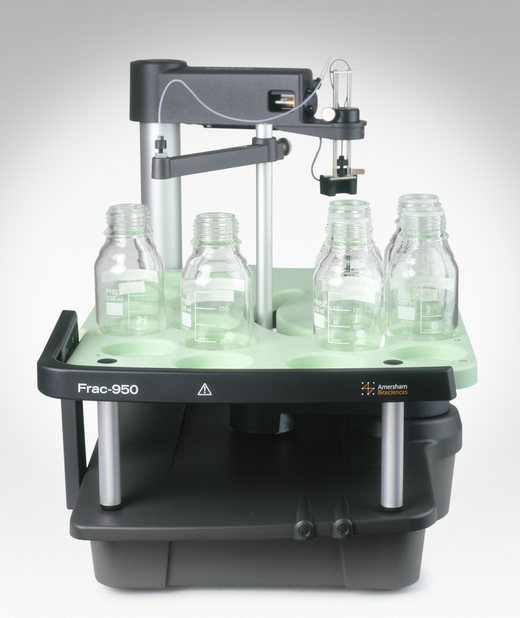

Fraction collector Frac-950 (including rack A)

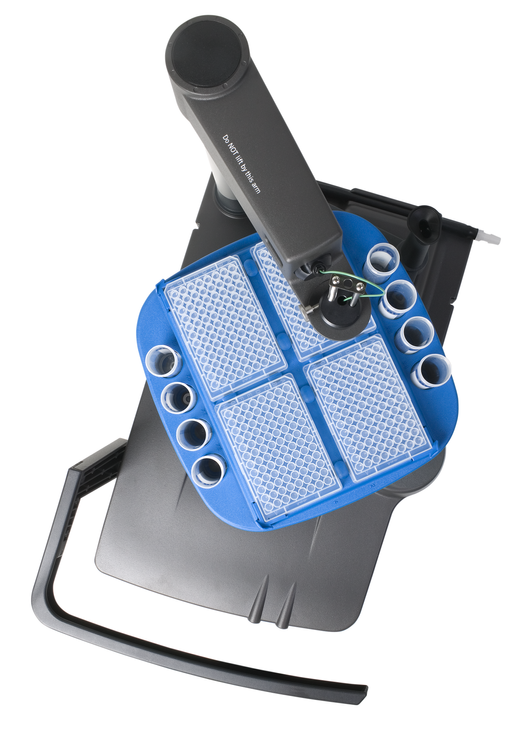

Frac-950 offers two independent ways of preventing sample loss and the highest flexibility in the choice of collection mode. Fractions are collected in microplates (over 384 fractions, up to 2.5 ml per fraction), or in a variety of test tube sizes (up to 250 ml per fraction). Collection is in volume or time mode and different fraction sizes can be collected during different stages of a separation. In standard fraction collection mode, fractions can be collected in 96-well microplates (up to four) and 12, 18, and 30 mm standard tubes. To deal with large fraction volumes, preparative mode allows fraction collection in eighty 30 mm standard tubes, twenty 250 ml bottles, or in 30 funnels, which connect to practically any vessel.

Automatic peak fractionation, based on peak detection using slope or level sensing, minimizes peak dilution and cross-contamination. Event marks correlate the fractions with the chromatogram. A recycle function enables collection from repetitive runs. Fraction Collector Frac-950 is an automated fraction collector for reliable and flexible collection of fractions based on time or volume from ÄKTAdesign chromatography systems. Fixed volume fractionation or automatic peak fractionation is possible. Peak fractionation is based on peak detection using slope sensing. Fraction marks and fraction numbers make it easy to identify fractions and peaks.
