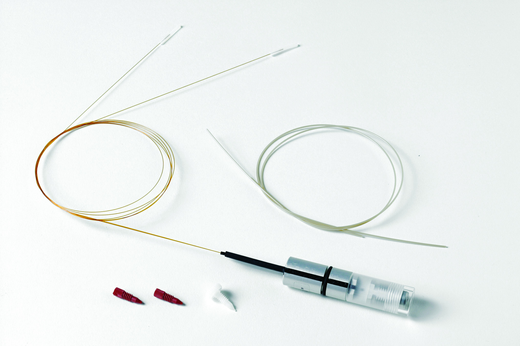

UV Flow Cell 6/20

Extremely small UV cell (2 nl) for sensitive detection during analytical chromatography, utilizing ≤ 180 μm columns.

Operating pressure max.	450 bar (45 Mpa) (6500 psi)
Operating Temperature	4°C-40°C
Volume	2 nl
Connections	Valco, i.d. 75 um, o.d. 287 um.
Relative humidity	0.2-0.95
Wetted Part	Yes
Wetted Materials	Fused Silica
Chemical stability	The wetted parts are resistant to organic solvents and salt buffers commonly used in chromatography of biomolecules, except 100% ethyl acetate, 100% hexane and 100% tetrahydrofuran (THF).
Baseline noise	Short term noise: ≤100 μAU at 214 nm Long term noise: ≤100 μAU at 214 nm
Drift	±100 x 10-6 AU/h at 254 nm
Width	13 mm
Depth	13 mm
Height	55 mm
Voltage	100-120/220-240 VAC
Protection class	IP 20
Cross-Section	Circular
Compliance	The product fulfills valid directives and standards when used within the conditions specified in the user manual. The product must also be used in the same state as it was delivered from Cytiva and connected only to other CE labeled Cytiva modules or other products as recommended. For regulatory details please see declaration of conformity.
Material	Polyetheretherketone (PTFE) Fluor carbon rubber (FPM) Polyetheretherketone (PEEK) Polymethylmethacrylate (PMMA) Silica
Guidance	Optical path length: 6 mm
