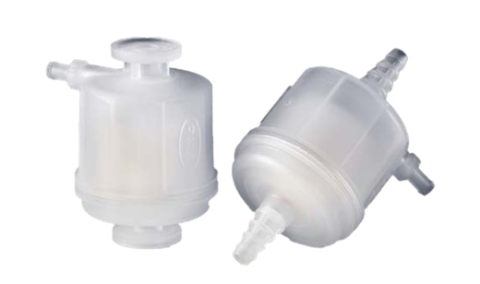

Mini Kleenpak capsules are used in the laboratory for process development and in pilot and manufacturing scale operations if processing requirements do not demand a large filter (process volumes from 2 L to 50 L). These filters are excellent for modeling filter performance at large production scale

These filters have an absolute rating of 0.2 μm in liquidbased on microbial retention.

Key features

Small, lightweight pleated membrane capsule filter (280 cm² [0.3 ft²] filter area)
Highly retentive Emflon PFR membrane
High flow rates associated with low Delta P enable the use of small filters – reducing installation and operating costs.
High resistance to autoclaving cycles and long filter life – reducing filtration costs
Integrity testable using the Forward Flow test
Choice of connection options for enhanced flexibility

High-Quality standards

Validated in liquids with Brevundimonas diminuta (ATCC 19146) at a challenge level of
10⁷ organisms/cm² of filter area 100 % integrity tested during manufacturing
Identified by a lot number and a unique serial number for complete traceability of manufacturing history and for user’s traceability systems
Each filter supplied with a Certificate of Test
Comprehensive validation guide available
Manufactured under a Quality Management System certified to ISO 9001:2000
Meets USP Biological Reactivity Tests in vivo, in accordance with USP Class VI plastics at 121°C

Tri-Clover is a trademark of Alfa-Laval, Inc.
