Fluorodyne™ II DJL membrane filter cartridges

Name: Fluorodyne™ II DJL membrane filter cartridges
SKU: 10017
Availability: InStock

PVDF enhanced sterile liquid filtration with mycoplasma removal for low extractables and high protein transmission

SKU： N/A 分类：直流过滤, 直流过滤, 直流过滤, 生物工艺过滤, 支原体过滤, 过滤, 支原体过滤, 支原体过滤, 过滤, mRNA&脂质纳米递送系统, 病毒载体

Cartridge length (imperial)

5 in
10 in
20 in
30 in

有效过滤面积

2700 cm²
5500 cm²
11000 cm²
16500 cm²

清除

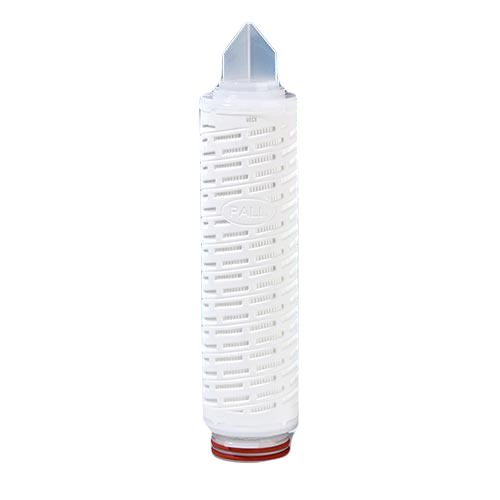

Fluorodyne™ II DJL membrane filter cartridges, a Pall Life Sciences product, are 0.1 micron-rated filters with serial layer (0.2/0.1 micron) membrane construction that deliver high flow rates and mycoplasma removal.

Fluorodyne II grade DJL filters are validated for removal of Acholeplasma laidlawii mycoplasma (ATCC 23206) with a typical T_R >10¹¹ and retention of B. diminuta (ATCC 19146) at 10⁷ CFU/cm² EFA. This allows for enhanced sterilization assurance as well as efficient mycoplasma control.

Standard AB-style filters are replaceable cartridges used with stainless steel housing assemblies, suitable for medium-to-large-scale manufacturing operations (100 L to > 1000 L). With Code 7 fittings as standard, these cartridges are the most versatile filtration units in Pall’s product range, and are available with a broader range of filtration media than any other filter type. These cartridges are also available encapsulated in the Kleenpak™ Nova capsule format.

Key Features and Benefits

Low extractables
High protein transmission
Rapid preservative recoveries
Easy integrity testing
Compatible with organic solvents, acids and chemicals¹
Resin and surfactant-free
Melt-sealed, non shedding
^¹ Except ketones and amides

Quality Standards

100% integrity tested
Manufactured for use in conformance with cGMP
ISO 9000 Certified Quality System
Meets USP Biological Reactivity Test in vivo for Class VI-121°C plastics
Every filter tested during manufacture
Test correlated to microbial retention
Certificate of Test provided includes
Fabrication integrity
Bacterial retention
Materials of Construction
Effluent quality for cleanliness, TOC and water conductivity, pH and pyrogens
