Easy Placement – The Sentino Filter Funnel and Adapter are designed with a press-fit seal, membrane guides and forceps access point allowing for simple set up and membrane removal. This will speed up the process time in the laboratory.
Risk Reduction – The Sentino Filter Funnel and membranes reduce the risk of a contamination event as compared to reusable funnels. The filter funnels are gamma irradiated eliminating the need for autoclaving or any other cleaning/sanitizing techniques. This will save time and money by eliminating the need to investigate contamination events resulting from the reusable devices.
Regulatory Compliance – Membrane filtration is the method of choice for microbial monitoring of aqueous solutions as specified in “”Standard Methods for the Examination of Water and Wastewater”” and Pharmacopoeias worldwide.

Easy and accurate sample measurement:

100 mL funnels are marked in three increments (20 mL, 50 mL and 100 mL). The 50 mL and 100 mL increments are marked completely around the funnel for higher visibility.
250 mL funnel is marked in four increments (50 mL, 100 mL, 200 mL and 250 mL. The 100 mL, 200 mL and 250 mL increments are marked completely around the funnel for higher visibility.

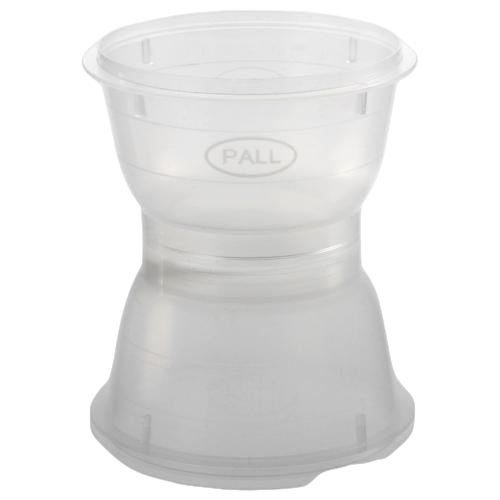

Sentino Filter Funnels

Materials of Construction

Funnel: polypropylene

Dimensions

100 mL
Diameter: 8.1 cm (3.2 in.)
Height: 5.3 cm (2.1 in.)
250 mL
Diameter: 8.1 cm (3.2 in.)
Height: 9.6 cm (3.8 in.)

Gamma-irradiated

Validated dose 15-30 kGy

Sentino Filter Funnel Adapters

Materials of Construction

Body and support screen: 316 stainless steel

Dimensions

Sentino Adapter
Diameter: 6.1 cm (2.4 in.)
Height: 2.5 cm (1.0 in.)
Standard Adapter
Diameter: 6.1 cm (2.4 in.)
Height: 2.3 cm (0.9 in.)

Connections

Filter Support Platform: Accepts 47 mm disc filter
Sentino Adapter Outlet: Hose barb outlet accepts 4.8 mm (3⁄16 in.) ID tubing and is designed to slide into the stage of the Sentino Microbiology Pump
Standard Adapter Outlet: 1⁄4 in. FNPT threaded connection
Sterilization: Provided non-sterile. Autoclavable if desired at 121-123°C (250-253°F) at approximately 1.0 bar (100 kPa, 15 psi) for 15-20 minutes

Applications

Drinking and Waste Water Analysis
Environmental and Recreational Water Monitoring
Industrial Water System Monitoring
Beverage Monitoring
