Fluorodyne™ EX EDF membrane in Mini Kleenpak™ capsules

Name: Fluorodyne™ EX EDF membrane in Mini Kleenpak™ capsules
SKU: 23182
Availability: InStock

A unique hybrid filtration media that enables outsanding capacity with fluids that tend to foul traditional sterilizing-grade filters

SKU： N/A 分类：直流过滤, 液体除菌过滤, 生物工艺过滤

Sterilization options

Gamma 辐照预灭菌
Suitable for Gamma Irradiation

清除

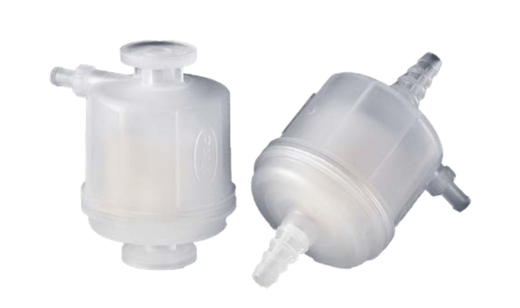

Fluorodyne™ EX grade EDF membrane in Mini Kleenpak™ capsules, a Pall Life Sciences product, are compact filters used in in process development and pilot manufacturing for volumes of 2 L to 50 L.

Fluorodyne EX grade EDF filters are 0.2 micron rated high capacity, low protein binding sterilizing grade filters. Incorporating a built-in prefiltration layer and validated to retain B. diminuta at a challenge level of 10⁷cfu per cm² membrane, Fluorodyne EX grade EDF filters are ideal for the sterile filtration of cell harvest material and challenging intermediate and final bulk biological process fluids..

Mini Kleenpak capsules are compact filters used in the laboratory for volumes of 2 L to 50 L in process development, and in pilot and manufacturing scale operations if processing requirements do not demand a large filter. These filters utilize a pleated membrane, and are excellent for modeling filter performance at large production scale.

Key features

Encapsulated format for higher flexibility, minimized cleaning and low installation costs
Minimal hold up volume vIdeal for scaling trials
Asymmetric, built-in prefilter layer for highest dirt-holding capacity
Validated for retention of B. diminuta when challenged with a minimum concentration of 107 CFU/cm² EFA
High flow rate
Low protein and preservative binding
Low extractables
Designed for autoclaving or SIP under wet or dry conditions

Quality standards

Manufactured for use in conformance with cGMP
100% integrity tested
ISO 9000 Certified Quality System
Meets USP Biological Reactivity Test in vivo for Class VI-121°C plastics
Every filter tested during manufacture. Test correlated to microbial retention
Certificate of Test provided includes:
Fabrication Integrity
Bacterial Retention
Materials of construction
Effluent quality for cleanliness, TOC and Water Conductivity, pH and Pyrogens
