Nylaflo membrane disc filters

Excellent chemical compatibility with esters, bases, and alcohols

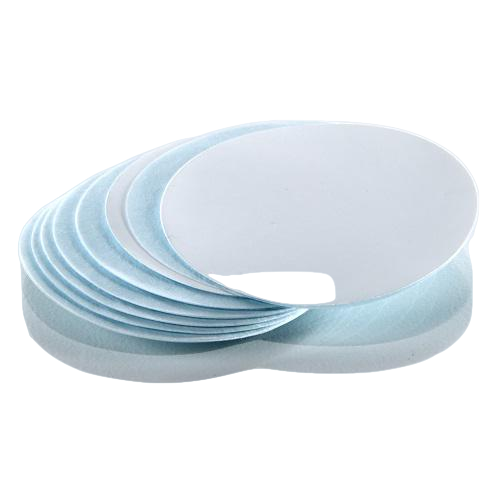

Nylaflo™ membrane disc filters, a Pall Life Sciences product, are a highly versatile laboratory membrane filter with excellent chemical compatibility with esters, bases, and alcohols

Naturally hydrophilic
Available in 0.2 and 0.45 µm pore sizes, in diameters ranging from 13 to 142 mm
HPLC certified. Provides assurance that the filter will not add artifacts to your analysis

Filter Media

Hydrophilic nylon

Pore Size

0.2 and 0.45 µm

Typical Thickness

127 µm (5 mils)

Typical Water Flow RatemL/min/cm2 at 0.7 bar (70 kPa, 10 psi)

0.2 µm: 12
0.45 µm: 16

Maximum Operating Temperature – Water

100°C (212°F)

Minimum Bubble Point – Water

0.2 µm: 3.4 bar (340 kPa, 49 psi)
0.45 µm: 2.6 bar (260 kPa, 37 psi)

Applications

Useful for a wide range of applications. Offers broad chemical resistance to common solvents.
Not recommended for acids > 1 N or halogenated solvents.

Useful for a wide range of both aqueous and solvent-based applications. Excellent chemical compatibility with esters, bases, and alcohols. Available in 0.2 and 0.45 µm pore sizes, in diameters ranging from 13 to 142 mm.
